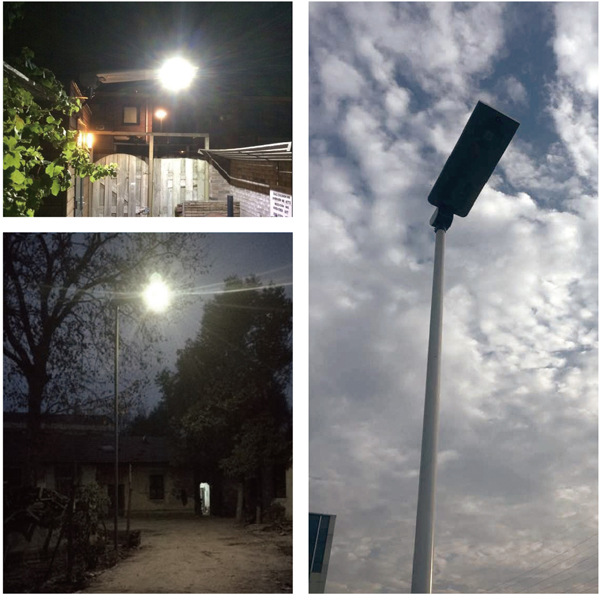

Project Case:
This solar light can be widely applied on difference location such
as Park, Parking Lot, Garden, Second Main Road,Pathway,etc.
Company:
ZDEG focus on solar street lights more than 9 years already and already
finished more than 600 projects in different area like America,
USA, Mexico Chile, Barhama, UAE, SAUDI ARABIA, CHILE, PERU...

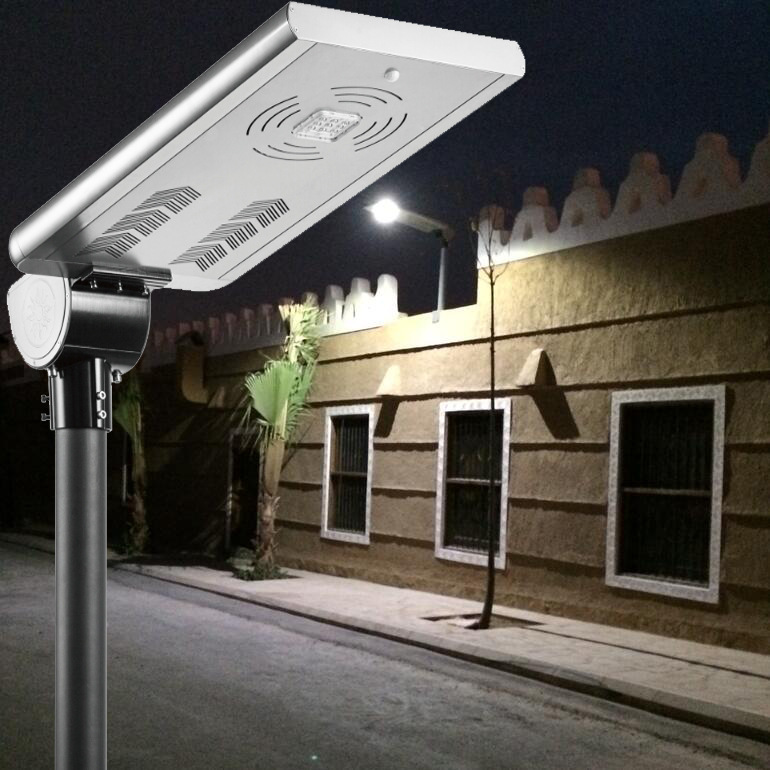

All in one solar street light include Li-battery, controller, and
LED light, solar panel. It is more
convenient for transportation and easy for installation, compare with separate
solar light.
All in one solar street lamps PIR sensor, make the product, more
energy-saving.
Product Description:
| LED lamp | /Samsung LED, rated power 30W ( dimming 1/3 rated power) efficiency
130LM/W,CCT 3000-6000K |
| Solar panel | mono.,17.5V70W,17% efficiency |
| Li battery | 12V30AHmaintance free Li battery |
| Controller | 12V10 intelligent optical+time controller and PIR sensor |
| Mounting Height | 6-7M |
| Lamp body Size & Weight | 120*43*12CM, N.W:11KG |
| Mounting sleeve Size & Weight | 32*30*20CM, N.W:7.2 KG |
| Discharge time | 10-12H, 3 days |
| Boom size | 90mm |
Design Advantage:
1.Design Philosophy: take Apple Iphone as a refernce; Keep up with
the highest grade(appearance,lines)
2.Adjustable Angle: it can let the solar panel receive most of
solar energy in different region
3. PIR Motion Sensor: saving more energy,dimmable.
4. LED Module Heat Sink Design: High Illuminationa, High
Waterpproof IP7 and Long Lifespan 80,000 Hours can be
guaranteed
5.Illumination Data: Different Pole Height, Width Road and Pole TO
POLE Distance decide the Lux. We can
follow your project information to customize you the Dialux.
6. Intensity Distribution Diagram: It can cover the most region
area you request for the project

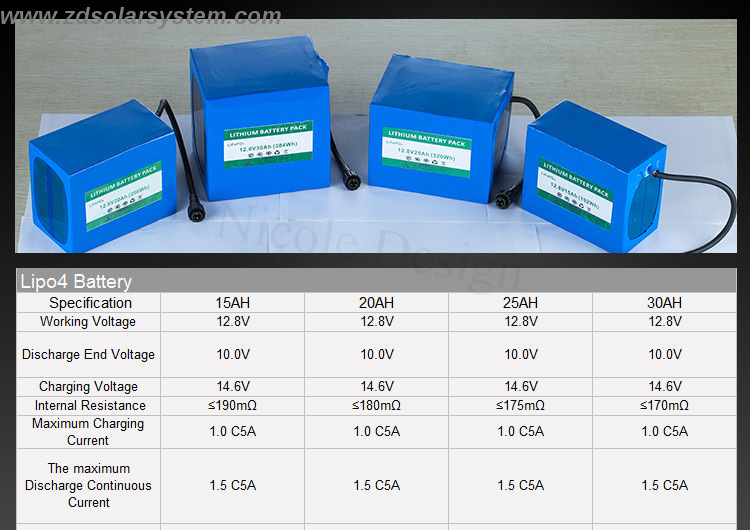

7. Branded LiFePo4 Battery is applied. It has been tested by MSDS.
8.New All In One Solar Street Light VS Conventional Separated Solar
Street Light
Comparision:
Whatever the mountain connector, appearance, led light source and
battery, our new design is outstanding by
comparing with other similar all in one solar street light.
Package:
Seaworthy Carton Package with two boxes of each unit:
For 15w to 20w. One 40HQ can load 700pcs
For 25w to 40w, one 40HQ can load 500pcs

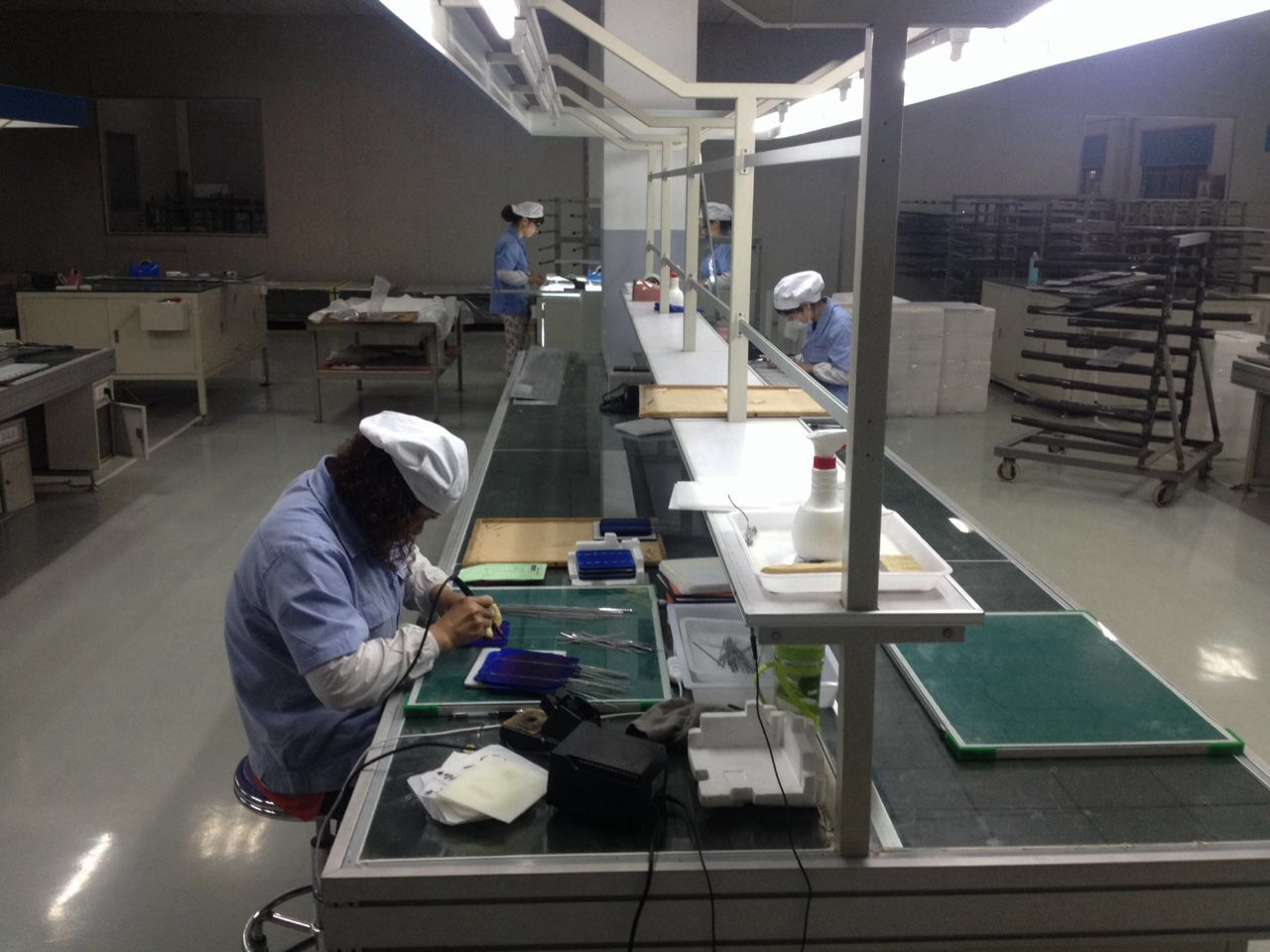

Our Factory production image:
Team work

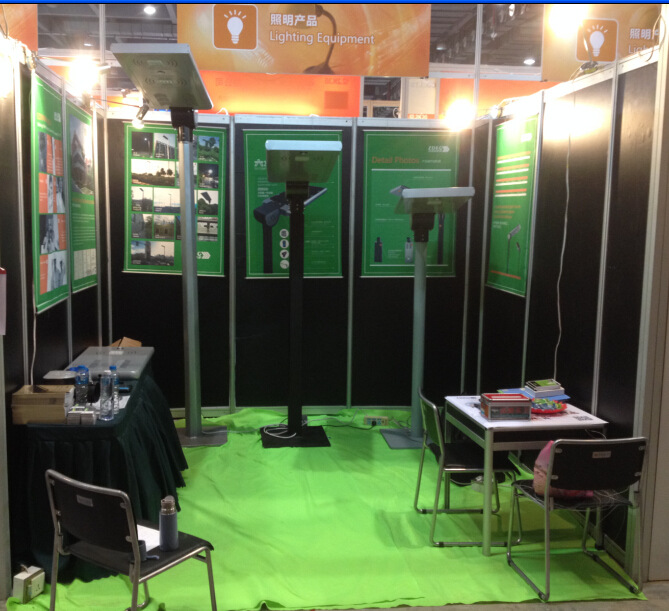

Trade Show:
Our new solar street light is on hot selling. Many clients likes
it..Different Fairs had displayed our New Solar
Street Light.
Canton Fair Dubai
Thailand Hongkong Indonesia
Certificate:

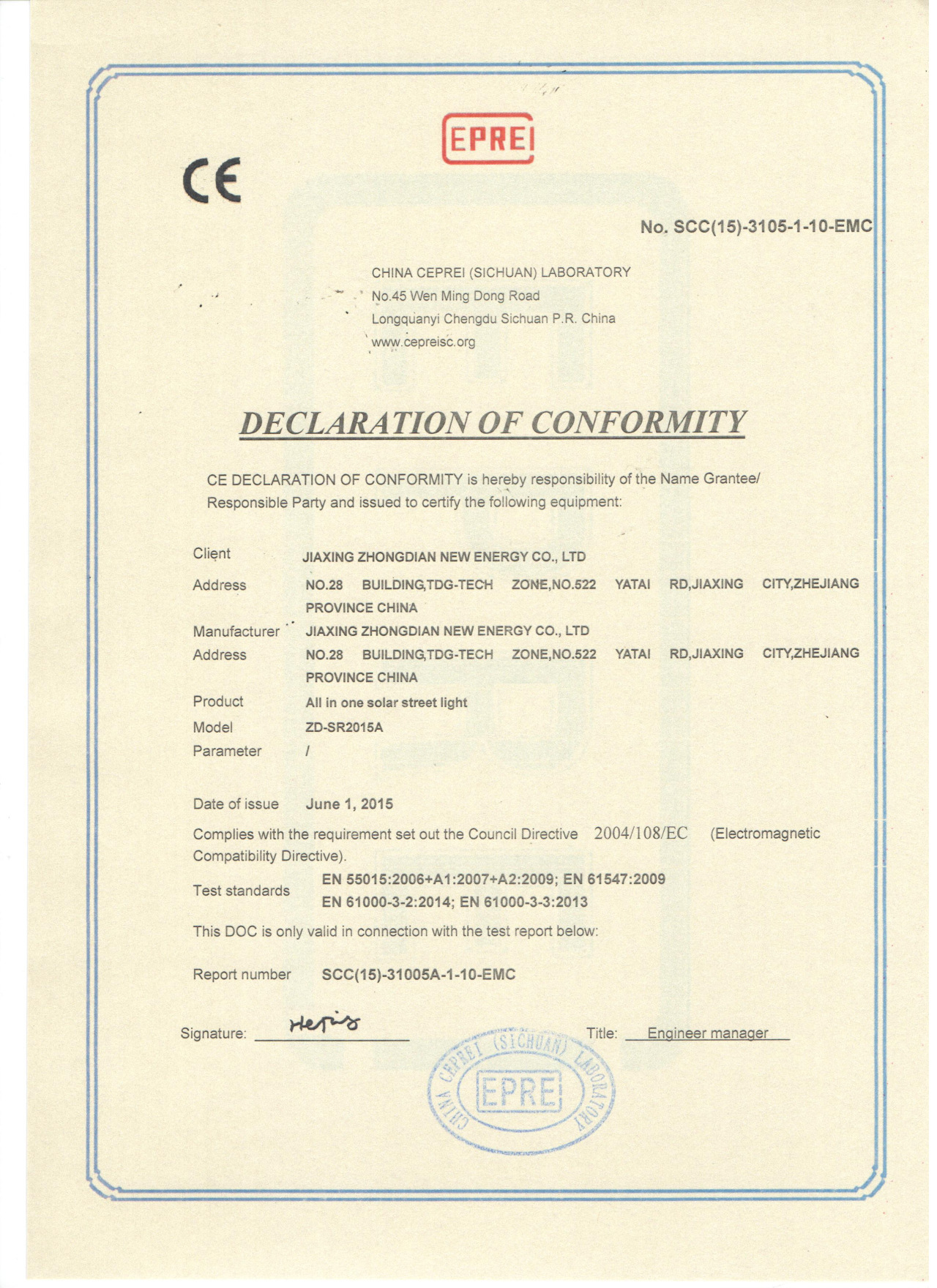

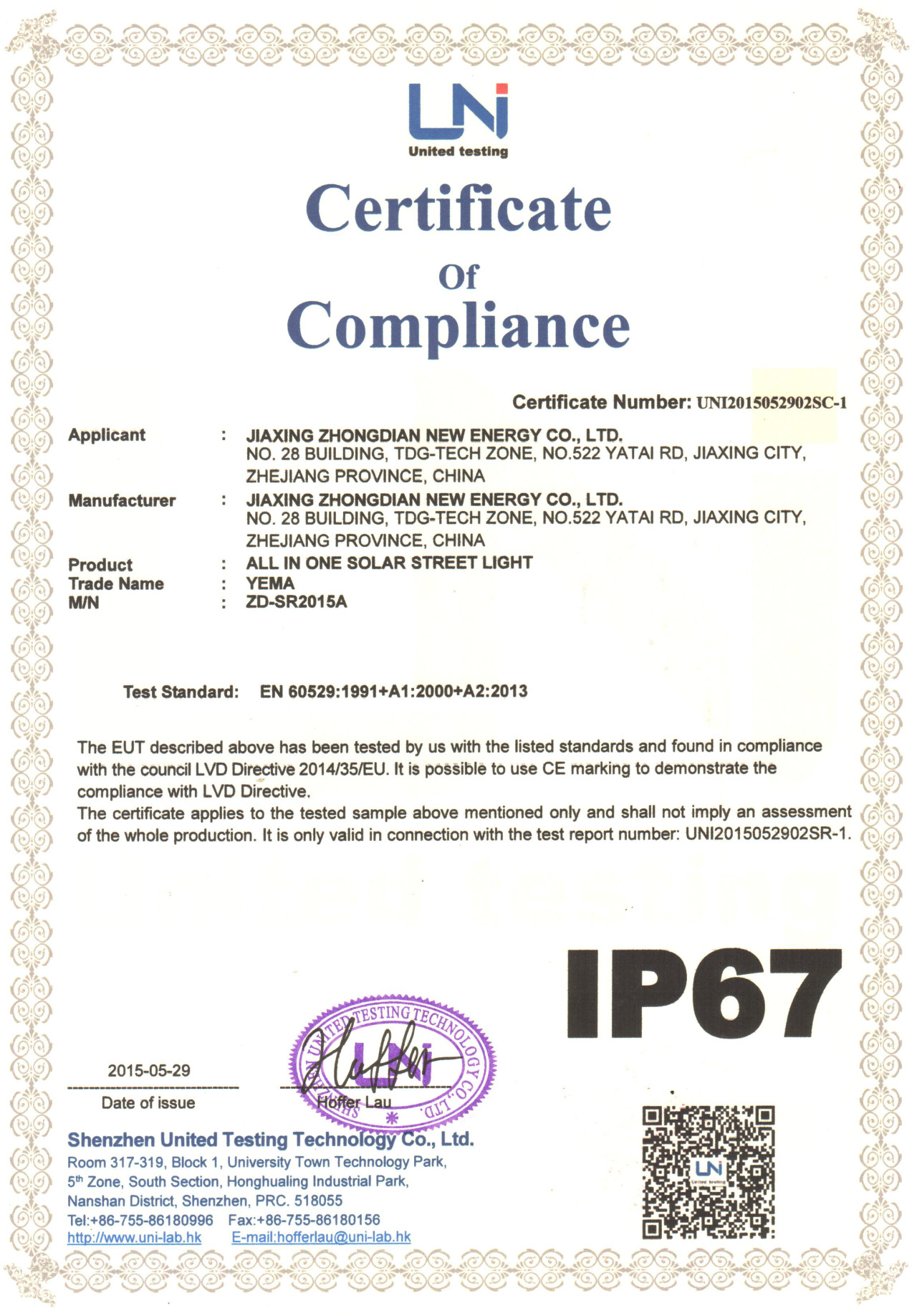

Our new solar light has been certified by CE,RoHS,IP67,MSDS. We
have the LETTER OF THE PATENT which
certified us as the original designer and manufacturer
FQA:
As you know the solar street lights are customize products. We need
do the products price according to your local weather and check
your local daily radiation to make the final price. So would you
have such below ideal on mind for solar street lights?
1. Will you need the light pole? What is the height you need?
2. What is the led street light power?
3. What is the working hours per day? 10 hours or 12 hours?
4. How many continunous bad weather like rainy and cloudy days for
support? 2 days or 3 days?
5. Installation city? country?
6. Quantity?
1.The sample price can be cheaper or not?if it can be same as bulk
price ?
For the sample price is standard. We will have season On sale price
for
more and more customer testing
our products and testing for our high quality products. Pls send the
inquiry to us, we will give you more details introduction.
2. What is the warranty time?
Our warranty year is three years , life time of each accessory is
five years. U do not worry about theusage situation. We are paying
more attention to the service.
3. The delivery time can be shorter?
Sample 2-5 days delivery. Batch order delivery time is 10-20 days.
Can be negotiable with us.We will try our best to meet your
requirements.
4.The specification of the products can be changed?
This products lines are standard and appropriated , which Based
on many professional test and our abundant projects experience.
Standard specification is good for quality management ,cost
management ,
this series is widely used with its enough power. We have done many
related tests for usage.
5. What is motivated-sensor?
PIR SENSOR , WHICH MEANS , within eight meters ,the led light will
be
fully energy working , when people is leaving the area, the light lasting
for 60 seconds full power and then turn into 30% energy-saving mode.
6.How to adjust the slope, why not horizontal?
Almost the slope of the similar products is horizontal design,
which
can not meet all requirements from different place . Our design is
adjustable angle: 10-20 each five can be adjustable. Which can
meet lots of customers’ requirements according to our professional
experiments. The lux of Light can be in good condition when the slope
is appropriated for the daily solar light.
7.There are many holes in the lamp panel , will the dust, insects
infect
the usage of the led light?
The holes in the led cover is designed for the led light heat heat
radiation,
can be cooling asap for protecting itself ,promising long-time life. Even
the dust and insects are covering the led, which will not affect the
heat radiation and usage. After lots of experiment.We just make such conclusion.
8.how much meters can be matched with how much power?
This products can meet requirements for the pole height from
3 to7meters
15watt 3 meters pole
20watt: 3-4 meters pole
25watt 4-5 meters pole
30watt 5-6 meters pole
40watt 6-7 meters pole
